DAKOTA DRIVEWAY KIT
DAKOTA DRIVEWAY KITDAKOTA RECEIVERDAKOTA HOSEDAKOTA TRANSMITTER INTERNAL

DAKOTA - WIRELESS EXTERNAL DRIVEWAY ALERT KIT

CODE: DCRH-2500

£169.99

In stock

ADD ADDITIONAL EXTERNAL PIRS AS REQUIRED £94.99

ADD EXTERNAL / INTERNAL PIRS AS REQUIRED £84.99ea

ADD ADDITIONAL WIRELESS PAGERS AS REQUIRED £107.99

ADD ADDITIONAL BEAM SETS AS REQUIRED £282.99ea

ADD ADDITIONAL PUSH BELLS AS REQUIRED £54.99

CHOOSE COMMUNICATION DEVICE IF REQUIRED

ADD EXTERNAL LOUD SIREN IF REQUIRED £54.99

Description

The DCRH-2500 is a very reliable and easy to install driveway alarm. The transmitter operates on one 9-volt battery and has 25' of 3/8" diameter exterior hose that will lie across the drive. When a vehicle drives over the hose, a signal will be sent to the DCR-2500 receiver up to 1/2 miles away*.

Part number: DCRH-2500

Product Description

A driveway alarm can be that extra layer of home security that you need! For those of you who already have an alarm system in place, a driveway alarm protects the parameter of your home and will instantly warn you of unwanted intruders. It can be useful for reasons beyond security too, as the driveway alarm can also give you that extra time to greet an approaching guest or to answer the door. Dakota is a long standing manufacturer of external alarms system and based in the USA.

This system comprises of a Heavy Duty Rubber Hose which is simple laid across the driveway, this is connected to a Battery Powered Wireless Transmitter which when driven over sends a signal up to 800 metres back to the Receiver which is located inside the house or office. Working in the same way to that of the old fashioned Garage Forcourt Systems, very popular with rural businesses and homes.

The versatile four channel Receiver is powered by a plug in transformer and has adjustable volume control, 12v outputs, output relays, audible and visual alerts, exit delays making this one of the best Wireless Driveway Alarms on the market.

There is no limit to the number of 2500E Detectors or Receivers that can be used with this system.

Kit Includes:
1 x Receiver & Transformer.

1 x Wireless Transmitter & Rubber Hose.
1 x 9v PP3 Battery.
1 x Set of Manuals.



Receiver Specification:
Size: 150 (W) x 95 (H) x 35 (D) mm.
Power Supply: 12v DC.
Working Wireless Range: 800 metres (line of sight).
Volume Control: Yes (off to very high).
Channels: 4
Channel Audible Alerts: 4 (Classical, Westminster Chime, Ding Dong, Whistle).
Visual Alert: Yes (four LED Lights).
Output Relay Type: (N/O - COM - N/C).
Output Relays: 4
Output Relay Rating: 24v DC - 3amp.
12v Out Put: Yes (400mA max).
12v Output Duration: 1 second, 10 seconds, 60 seconds, 10 minutes.
12v Output Channels: 1 - 2 - 3 - 4 (selectable).
Delay Exit: 5 minutes (selectable for each channel).
Reminder Bleep: Yes (beeps every 15 minutes after an activation if required, selectable).
Frequency: 433.92 MHz.

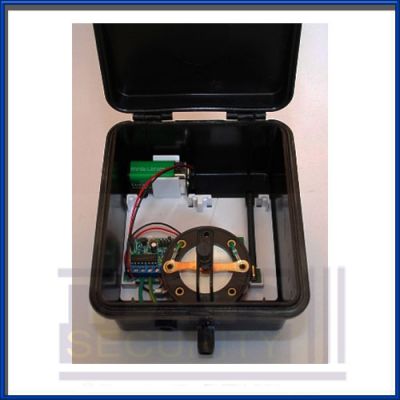

Transmitter Specification:
Size of Transmitter: 140mm (W) x 160 (L) x 80mm (D)
Power Supply: 9v PP3 Battery
Battery Life: 6 - 12 months.
Transmitting Distance:  800 metres (line of sight).
Frequency: 433.92 MHz.

Hose Specification:
Length: 7 metres.
3/8" Premier  Rubber.






Wireless Transmission Information

One of the key issues when purchasing a Wireless Driveway Alarm is choosing a system with wireless capabilities to suit your enviroment. You will always see the term 'Line of Sight' next to the advertised Wireless Transmission range, therefore understanding this industry standard measurement will help you decide which system to purchase.

Overview

The Dakota 2500E Wireless Driveway Alarms consist of various types of battery powered Detectors, together with a choice of Receivers or Portable Pagers, ideal solution for monitoring your Driveway or Entrance.

The impressive wireless transmission range is 800 metres (line of sight).

The selection of battery powered detectors include:

  • PIR
  • Vehicle Detecting Sensor
  • Solar Powered Active Beam
  • Air Hose
  • Gate Contact
  • Push Button

The versatile Receiver includes:

  • 12v Output Duration Adjustable: 1 - 10 seconds & 1 & 10 minutes
  • 4 x 12v Output Channels: Adjustable to all four channels
  • Exit Delay: 5 minutes (selectable).
  • Reminder Bleeps & LED's
  • Adjustable Volume


The unique Portable Pager includes:

  • 4 x Channels
  • Audible Alert
  • Vibration Alert
  • Visual Alert
  • Event Logging
  • Time & Date Stamp
  • One weeks Operation of a single Charge
  • Belt Clip


You can choose to use as many Detectors, Receivers & Pagers as you need for your application, there are no limits !!

Positioning of a Dakota 2500E PIR

The most popular detector with the Dakota 2500E is the battery powered PIR, this is ideal for monitoring most types of Gateways or Entrances, the positioning of these PIR's can make a massive difference to the overal performance if the system,

Please click on this link to find a full explanation of how best to position the PIR, the article is based around the larger Dakota 3000E PIR, but the information is just as accurate when using the smaller 2500E system .
