Item Number: DS-KV8202-IM
Product Description

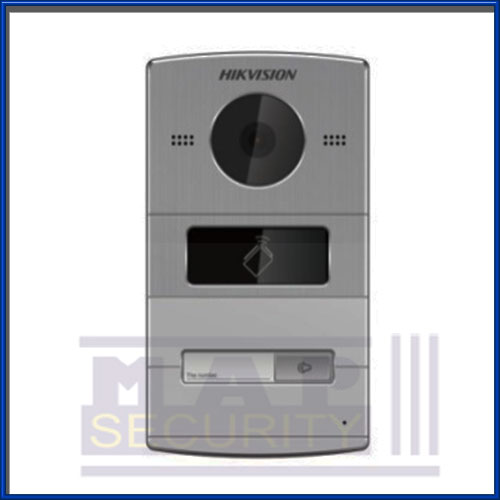

The DS-KV8202-IM is an external door intercom station designed to control entrance/exit to and from two rooms with either a button or card reader. The station features a 1080p HD camera for streaming to a tablet device, this allows you to communicate to the person at the door safely with near lossless audio / video quality.
Communication between the DS-KV8202-IM and an indoor station is easy with a built-in microphone and speaker that uses noise suppression and echo cancellation for a clear sound..
Product Specifics
- Video intercom function
- HD video surveillance
- (Max. resolution 1280 x 720 @25fps, WDR 120º wide angle)
- Self-adaptive light supplement
- Access control function
- Issues cards via local station function (This function will be invalid if the card has been activated via iVMS-4200)
- Auto-uploads captured pictures to FTP or the client while unlocking the door
- Door magnetic alarm & tamper alarm function
- Noise suppression & echo cancellation
- Remote upgrade & batch configuration functions
System Specifics
Processor: | High-Performance Embedded SOC Processor
Operation System: | Embedded Linux Operation System
Video Parameters
Camera: | CMOS Low Illumination 1.3 MP HD Colorful Camera
Video Compression Standard: | H.264
Resolution: | 1280 x 720
Video frame rate: | 25 fps
Audio Parameters
Audio Input: | Built-in Omnidirectional Microphone
Audio Output: | Built-in Loudspeaker
Audio Compression Standard: | G.711 U
Audio Compression Rate: | 64 Kbps
Audio Quality: | Noise Suppression and Echo Cancellation
Network Parameters
Ethernet: | 10/100 Mbps Self-Adaptive Ethernet
Network Protocol: | TCP/IP, RTSP
Access Control Parameters
Internal Card Reader: | Built-in IC Card Reader
Exit button: | Exit Button for Opening the Door
Door Magnetic Detection: | Detects Door Magnetic Status
Light Supplement
Light Supplement Mode: | IR Supplement
Alarm Parameters
Alarm Input: | Door Magnetic Alarm, Tampering Alarm
Device Interfaces
Network Interface: | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
RS-485: | 1 RS-485 Half-Duplex Port
I/O Input: | 8
I/O Output: | 1
General
Indoor Station Access Amount: | 4
Material: | Aluminum Alloy
Power Supply: | 12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)
Power Consumption: | ≤12 W
Working Temperature: | -40° C to +70° C (-40° F to 158° F)
Working Humidity: | 10% to 90%
IP Protection Level: | IP65
Dimensions(L × W × H): | 182 mm × 100 mm × 33 mm (7.17" × 3.94" × 1.30")
Certification: | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Cameras
Datasheet (DS-KV802X-1M.jpg, 23 Kb) [Download]
